WiFi is essential for modern life. From streaming movies to video calls, your connection quality affects everything you do online. When WiFi works well in one room but poorly in another, frequency bands are often the cause.

This guide explains the key differences between 2.4 GHz, 5 GHz, and 6 GHz WiFi bands. You'll learn how each band performs, their pros and cons, and which one fits your needs best. We'll show you how to set up your network for optimal performance in your home or office.

The Evolution of WiFi Frequency Bands: From 2.4 GHz to 6 GHz

WiFi has come a long way since its inception in the late 1990s. What began as a simple way to connect devices without cables has evolved into a sophisticated ecosystem of standards and technologies.

Historical Development of WiFi Standards

WiFi technology has undergone significant evolution through various IEEE 802.11 standards:

As shown in the table, each new generation brought significant improvements in speed and capabilities. The introduction of dual-band support in WiFi 4 marked a pivotal moment, allowing users to take advantage of both 2.4 GHz and 5 GHz frequencies. WiFi 6E brought the revolutionary addition of the 6 GHz band, which we'll discuss in detail.

"We collectively run more video streaming, gaming, and cloud applications to the point where 5 GHz congestion can often limit user experiences. That's why, as of 2020, the Federal Communications Commission (FCC) opened the 6 GHz spectrum exclusively for new devices in the United States, and other regional governments are doing the same." - Intel [2]

Why New WiFi Frequency Bands Were Developed

The development of new WiFi frequency bands wasn't arbitrary – it was driven by specific needs:

• Increasing device density: The average home now has 20+ connected devices, up from just 5-10 a decade ago

• Growing bandwidth demands: 4K streaming, cloud gaming, and video conferencing require more data throughput

• Congestion issues: The 2.4 GHz band became extremely crowded, leading to interference and performance degradation

• Need for reduced latency: Applications like VR/AR and competitive gaming demand lower latency connections

The Science Behind WiFi Frequency Bands: 2.4 GHz vs 5 GHz vs 6 GHz

To truly understand the differences between these frequency bands, we need to look at the underlying physics of radio waves.

Understanding Radio Waves and Frequency Bands

WiFi uses radio waves to transmit data wirelessly between devices. These waves have specific properties that affect how they perform:

• Wavelength: The distance between consecutive wave peaks

• Frequency: How many wave cycles occur per second (measured in Hz)

• Amplitude: The height of the wave, which relates to signal strength

The frequency and wavelength have an inverse relationship – higher frequencies have shorter wavelengths. This relationship fundamentally impacts how WiFi signals behave:

• Lower frequencies (like 2.4 GHz) have longer wavelengths, which can travel farther and penetrate solid objects better

• Higher frequencies (like 5 GHz and 6 GHz) have shorter wavelengths, which can carry more data but don't travel as far or penetrate objects as well

As Intel explains using a helpful analogy:

"A simple way of understanding wireless connectivity is to think of each frequency band as a different type of road and channels as the number and width of the lanes each road can support. 2.4 GHz is similar to a one-lane country road that isn't designed for heavy traffic but can take you farther into rougher landscapes. 5 GHz is like a multilane freeway that is commonly used as an alternative to country roads and is often congested even though it's larger. And the latest band, 6 GHz, is much larger and has many more high-speed lanes that are exclusive to the newest and fastest vehicles." [2]

Technical Comparison of WiFi Frequency Bands

Let's dive deeper into the technical specifications of each band:

The spectrum width is particularly important – the 6 GHz band is more than twice as wide as the 5 GHz band and over 17 times wider than the 2.4 GHz band. This massive increase in available spectrum translates directly to more channels and less congestion.

The Fundamental Differences: 2.4 GHz vs 5 GHz vs 6 GHz WiFi Bands

Now that we understand the scientific underpinnings, let's explore the practical differences between these frequency bands.

Range and Coverage Comparison

When comparing range vs speed in WiFi, there's a clear tradeoff:

• 2.4 GHz: Offers the best range, typically covering 150-300 feet indoors and up to 1,000 feet in open areas. The signal can penetrate walls, floors, and other solid objects relatively well.

• 5 GHz: Provides about 30-50% less range than 2.4 GHz. While it may struggle to reach distant rooms in larger homes, it's usually sufficient for most apartments and medium-sized houses.

• 6 GHz: Has the shortest range, approximately 30% less than 5 GHz. It's best suited for same-room or adjacent-room connections.

"A 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at shorter range. Your choice of 2.4 GHz or 5 GHz will depend on where and how you use your WiFi connection most." [9]

This means that in a typical multi-level home, 2.4 GHz signals might reach from the basement to the upstairs bedrooms, while 5 GHz might struggle to provide consistent coverage between floors, and 6 GHz might be limited to the same floor or even the same room as the router.

Speed and Performance Differences

The detailed comparison of 2.4 GHz vs 5 GHz vs 6 GHz for gaming and streaming shows clear advantages for the higher frequencies:

• 2.4 GHz: Typically delivers real-world speeds of up to 100 Mbps. While this is sufficient for basic web browsing, email, and standard-definition video streaming, it may struggle with 4K streaming or competitive online gaming.

• 5 GHz: Can achieve real-world speeds up to 1 Gbps. This makes it excellent for 4K streaming, video conferencing, and online gaming where lower latency is crucial.

• 6 GHz: Capable of delivering speeds exceeding 2 Gbps. This ultra-fast connection is perfect for bandwidth-intensive applications like 8K streaming, virtual reality, and future applications we haven't even imagined yet.

The benefits of upgrading from 2.4 GHz to 6 GHz WiFi for home networks are significant, especially if you have many devices or use bandwidth-intensive applications. Many users report dramatically improved performance for specific use cases:

Case Study: 4K Streaming Household The Johnson family upgraded to a WiFi 6E router supporting 6 GHz. Before the upgrade, they experienced buffering when multiple family members streamed 4K content simultaneously. After upgrading, they report seamless streaming even with 3+ 4K streams running concurrently, along with video calls and online gaming. The most noticeable improvement came when devices that supported 6 GHz could take advantage of the uncongested band.

Interference and Congestion Factors

One of the most significant advantages of the higher frequency bands is reduced interference:

• 2.4 GHz: Extremely congested, not only with other WiFi networks but also with Bluetooth devices, microwave ovens, baby monitors, cordless phones, and garage door openers. In dense residential areas, dozens of networks might be competing for the same limited spectrum.

• 5 GHz: Much less congested than 2.4 GHz, but still faces interference from neighboring networks, especially in apartment buildings. The 5 GHz WiFi compares favorably to 2.4 GHz in crowded environments due to more available channels and less overlap.

• 6 GHz: Currently, this band offers a pristine, interference-free experience since very few devices can access it yet. It's like having a private highway while everyone else is stuck in traffic on public roads.

According to the search results:

"The 2.4 GHz band is often subject to interference from other devices, such as microwaves, Bluetooth gadgets, and cordless phones, which can cause issues with WiFi performance. In comparison, the 5 GHz band is less susceptible to such congestion and interference." [8]

This difference in WiFi frequency bands in terms of interference is particularly noticeable in urban environments, where dozens of overlapping networks compete for limited spectrum.

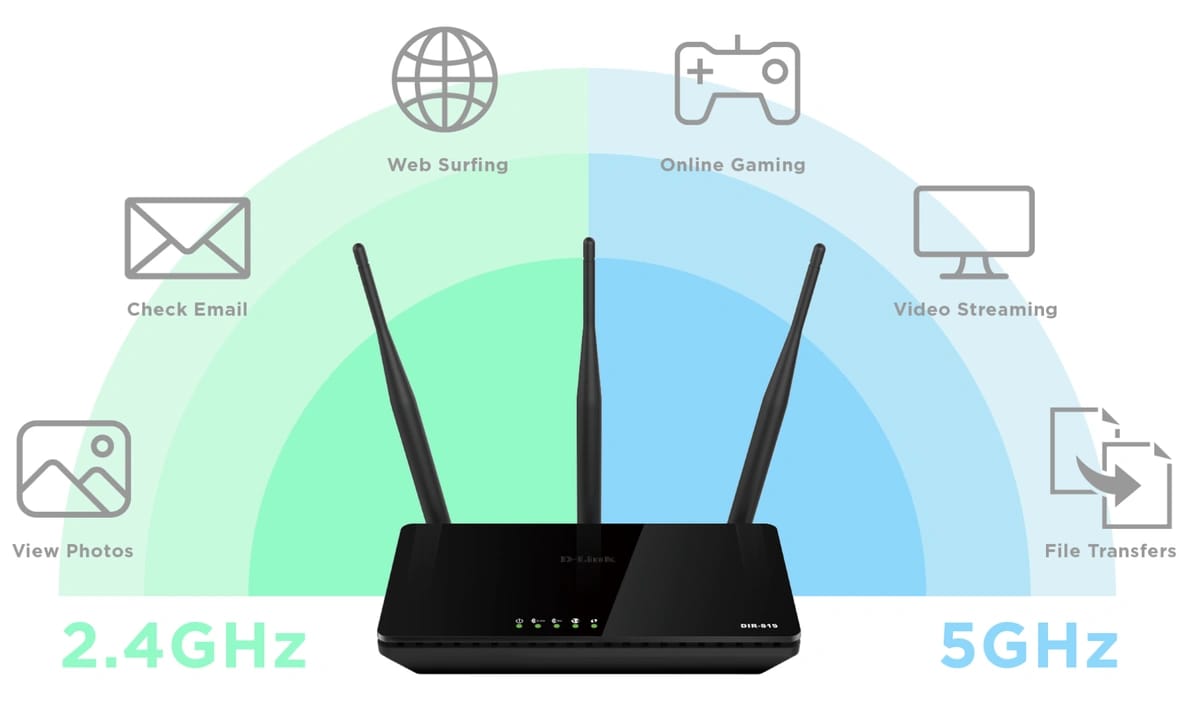

Practical Applications: When to Use Each WiFi Frequency Band

Understanding when to use each frequency band can significantly improve your wireless experience.

Ideal Use Cases for 2.4 GHz WiFi

The 2.4 GHz band remains valuable for specific scenarios:

• Long-range connections: When you need to reach a distant part of your home or office

• IoT devices: Many smart home devices like thermostats, door locks, and sensors only support 2.4 GHz

• Compatibility with older devices: For legacy equipment that doesn't support newer frequencies

• Through-wall communication: When you need signals to penetrate multiple walls or floors

• Basic internet tasks: Email, web browsing, and social media don't require high bandwidth

2.4 GHz is often the best choice for:

• Smart home devices (Echo, Ring, smart light bulbs, etc.)

• Older laptops and smartphones

• Devices in the furthest corners of your home

• Outdoor WiFi coverage

Best Scenarios for 5 GHz WiFi

The 5 GHz band finds its sweet spot in many common scenarios:

• HD and 4K streaming: Netflix, YouTube, Disney+, and other streaming services

• Video conferencing: Zoom, Teams, WebEx, and other platforms

• Online gaming: Reduced latency compared to 2.4 GHz

• Large file transfers: Moving photos, videos, and other large files between devices

• Medium-range, high-performance needs: When you're within a reasonable distance of the router but need better performance

5 GHz works best for:

• Modern smartphones and laptops

• Smart TVs and streaming devices

• Gaming consoles

• Home office setups

Optimal Applications for 6 GHz WiFi

The newest band, 6 GHz, excels in the most demanding scenarios:

• Ultra-high-definition streaming: 8K video and beyond

• Virtual reality and augmented reality: Immersive experiences require massive bandwidth

• Competitive gaming: Where every millisecond of latency matters

• Future-proofing: Preparing for upcoming bandwidth-intensive applications

• Ultra-dense environments: Homes with dozens of connected devices

6 GHz is ideal for:

• The newest smartphones (iPhone 16, Samsung Galaxy S24, etc.)

• WiFi 6E/7-compatible laptops

• High-end gaming setups

• Professional content creation workstations

Strategic Multi-Band Usage for Optimal Performance

The best approach for most homes and offices is to strategically distribute devices across all available bands:

• Connect IoT and distant devices to 2.4 GHz: Smart home devices, distant bedrooms, garage, basement

• Connect everyday devices to 5 GHz: Smartphones, laptops, streaming devices within reasonable range

• Connect high-performance devices to 6 GHz: Gaming PCs, 8K TVs, VR headsets, devices closest to the router

This approach maximizes the advantages of each band while minimizing congestion issues.

Device Compatibility with Different WiFi Frequency Bands

Not all devices support all frequency bands, which is an important consideration when planning your network.

How to Identify Your Device's WiFi Band Capabilities

To determine which frequency bands your devices support:

For smartphones and tablets:

• iOS: Go to Settings > WiFi > Tap (i) next to your network

• Android: Go to Settings > Connections/Network > WiFi > Advanced

For laptops:

• Windows: Use Device Manager to check wireless adapter properties

• macOS: Hold Option and click WiFi icon > Look for "PHY Mode"

For IoT devices:

• Check the device specifications or manual

• Many IoT devices only support 2.4 GHz

Router Technology and WiFi Frequency Bands

Modern routers come in several configurations:

• Single-band routers: Support only 2.4 GHz (increasingly rare)

• Dual-band routers: Support both 2.4 GHz and 5 GHz

• Tri-band routers: Support 2.4 GHz and two 5 GHz bands or 2.4 GHz, 5 GHz, and 6 GHz

• Quad-band routers: Support 2.4 GHz, two 5 GHz bands, and 6 GHz

When selecting a router, consider not just the bands it supports but also the WiFi standard:

• WiFi 5 (802.11ac): Supports 2.4 GHz and 5 GHz

• WiFi 6 (802.11ax): Better performance on 2.4 GHz and 5 GHz

• WiFi 6E: Adds 6 GHz support to WiFi 6

• WiFi 7: Enhanced performance across all three bands with new features like Multi-Link Operation

"If you want to take advantage of the latest wireless speeds, you will need to acquire newer access points, routers, and devices that support 6 GHz connectivity. The good news is that your older devices will still be able to connect to the legacy WiFi bands of newer tri-band routers." [2]

Optimizing Your WiFi Experience Across Different Frequency Bands

Knowing which band to use is only the first step. Optimizing your setup can dramatically improve performance.

Channel Selection and Band Configuration

Each frequency band is divided into channels, and choosing the right channels can significantly reduce interference:

For 2.4 GHz:

• Stick to channels 1, 6, or 11 (the only non-overlapping channels)

• Use a WiFi analyzer app to find the least congested channel in your area

For 5 GHz:

• Many more channels are available, but some may be restricted due to radar usage (DFS channels)

• Higher channels (149-165) often have fewer restrictions and may allow higher power

For 6 GHz:

• Currently very uncongested, but as adoption grows, channel selection will become more important

• Many routers will automatically select optimal channels

Troubleshooting WiFi Frequency Band Issues

Common problems and solutions for each band:

2.4 GHz issues:

• Problem: Slow speeds despite good signal strength

• Solution: Check for interference from other devices or switch channels

5 GHz issues:

• Problem: Inconsistent connection in certain rooms

• Solution: Consider adding a mesh node or repositioning your router

6 GHz issues:

• Problem: Devices not connecting to 6 GHz despite being close to the router

• Solution: Ensure your devices actually support 6 GHz (WiFi 6E or WiFi 7)

WiFi Analyzer Tools and Band Optimization

Several tools can help you optimize your WiFi setup:

• WiFi analyzer apps: Tools like WiFi Analyzer (Android), NetSpot, or inSSIDer to visualize channel congestion

• Router management apps: Most modern routers have companion apps with optimization features

• Professional tools: For enterprise environments, consider specialized tools like Ekahau for full site surveys

"Successfully implementing 6 GHz Wi-Fi requires careful planning and the right tools. Whether you're upgrading an existing network or designing from scratch, visualization and validation of your deployment become critical success factors." [7]

Future of WiFi Frequency Bands: Beyond 2.4 GHz, 5 GHz, and 6 GHz

The WiFi landscape continues to evolve rapidly with new technologies on the horizon.

WiFi 7 and Multi-Band Integration

WiFi 7 (802.11be) represents a significant leap forward in how we use WiFi frequency bands:

• Multi-Link Operation (MLO): Allows devices to simultaneously connect on multiple bands, combining bandwidth or dynamically switching for optimal performance

• 320 MHz channels: Double the width of WiFi 6E's widest channels, enabling massive throughput

• 4K QAM modulation: Packs more data into each transmission

• Multi-Resource Unit (Multi-RU): More efficient spectrum utilization

This means future devices won't have to choose between bands – they'll use all available bands in concert for the best possible experience.

Emerging Technologies and Frequency Band Utilization

Beyond WiFi 7, several emerging technologies will impact how we use frequency bands:

• AI-driven network optimization: Machine learning algorithms that adapt network settings in real-time

• Spectrum sharing technologies: More efficient use of available spectrum through dynamic allocation

• Convergence with 5G technologies: Seamless handoff between cellular and WiFi networks

• Potential new frequency bands: Researchers are exploring even higher frequencies for future WiFi standards

WiFi Frequency Bands Comparison: Making the Right Choice

With all this information, how do you make the right choice for your specific needs? Here's a quick decision guide to help you select the optimal frequency band for different scenarios:

Decision Framework for Choosing the Right WiFi Frequency Band

When deciding which frequency band to use, consider these key factors:

Device location and distance from router

• Close to router (same room): 6 GHz ideal, 5 GHz good alternative

• Medium distance (1-2 rooms away): 5 GHz typically best

• Far from router (multiple walls/floors): 2.4 GHz likely necessary

Application requirements

• High bandwidth needs (4K/8K streaming, VR): 6 GHz > 5 GHz > 2.4 GHz

• Low latency needs (gaming, video calls): 6 GHz > 5 GHz > 2.4 GHz

• Basic connectivity (IoT, smart home): 2.4 GHz sufficient

Environment factors

• Dense apartment building: 6 GHz best for avoiding congestion

• Suburban home: 5 GHz typically sufficient

• Large property: Mix of 2.4 GHz for range, 5/6 GHz for speed near router

Device compatibility

• Newer flagship devices (post-2021): May support all three bands

• Mid-range and older devices: Likely limited to 2.4 GHz and 5 GHz

• IoT devices: Most only support 2.4 GHz

Maximizing Performance Across WiFi Frequency Bands

To get the best possible performance from your WiFi network, consider these advanced optimization strategies:

Router Placement Optimization

Your router's location significantly impacts performance across all frequency bands:

• Centralize your router: Place it in a central location to maximize coverage

• Elevate the router: Position it at least 5-7 feet off the ground

• Avoid interference: Keep away from microwaves, baby monitors, and other electronics

• Consider mesh networking: For larger homes, a mesh system can provide better coverage than a single router

Advanced Band Management Techniques

Modern routers offer sophisticated tools to optimize performance:

• Smart Connect/Band Steering: Allows the router to automatically assign devices to optimal bands

• Quality of Service (QoS): Prioritizes specific applications or devices

• Airtime Fairness: Prevents slow devices from monopolizing bandwidth

• Beamforming: Focuses signal strength toward connected devices

"WiFi 6E's more spectrum and high-bandwidth channels helps relieve congestion and interference whilst still providing quick speed and more connected capacity for more devices." [1]

Software and Firmware Considerations

Keep your devices and router updated for optimal performance:

• Router firmware updates: Regularly check for and install firmware updates

• Client device drivers: Update network drivers, especially for laptops and desktops

• Channel selection software: Use WiFi analyzer apps to identify and avoid congested channels

The Future of WiFi Frequency Bands: WiFi 7 and Beyond

The evolution of WiFi frequency bands continues with WiFi 7, currently in development and expected to be widely available by 2025.

WiFi 7 Features and Improvements

WiFi 7 (802.11be) will bring several groundbreaking enhancements:

• 320 MHz channels: Double the width of WiFi 6E's widest channels

• Multi-Link Operation (MLO): Allows simultaneous use of multiple bands and channels

• 4096-QAM: Increases data density for higher throughput

• Improved interference mitigation: Better performance in congested environments

"WiFi 7 technology's 'MLO' feature grants the ability to combine frequency bands in a single connection." [10]

Emerging Spectrum and Technologies

Looking beyond current technologies:

• Sub-1 GHz bands: Research into long-range, low-bandwidth applications

• Millimeter-wave (mmWave) technology: Exploration of extremely high-frequency bands

• Convergence with 5G/6G: Integration of cellular and WiFi technologies

• AI-driven network optimization: Intelligent allocation of spectrum resources

Conclusion

The differences between WiFi frequency bands showcase the classic engineering tradeoff between range and speed. The 2.4 GHz band offers excellent range but limited speed, the 5 GHz band provides a balanced middle ground, and the 6 GHz band delivers exceptional speed at shorter distances.

As you build or upgrade your home network, consider creating a strategic multi-band ecosystem. Use 2.4 GHz for devices that need extensive range but little bandwidth, 5 GHz for your everyday devices at moderate distances, and 6 GHz for high-performance applications close to your router.

The benefits of upgrading from 2.4 GHz to 6 GHz WiFi for home networks are substantial, especially in crowded environments where the pristine 6 GHz spectrum can make a dramatic difference in performance. As more devices support the latest standards, your investment in a modern tri-band router will continue to pay dividends through better performance and enhanced user experiences.

By understanding the strengths and limitations of each frequency band, you can make informed decisions that optimize your WiFi experience for years to come.

FAQs About WiFi Frequency Bands

Q: Can I use 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously?

A: Yes, if you have a tri-band router that supports all three bands, you can use them simultaneously for different devices in your network.

Q: Will WiFi 6E devices work with my older router?

A: Yes, WiFi 6E devices are backward compatible and will work with older routers, but they'll be limited to using the 2.4 GHz and 5 GHz bands, not accessing the 6 GHz band's benefits.

Q: How much faster is 6 GHz compared to 5 GHz in real-world usage?

A: In real-world testing, 6 GHz can deliver approximately 30-40% faster speeds than 5 GHz when using the same channel width, primarily due to less interference.

Q: Do I need to configure my router differently for each frequency band?

A: Modern routers typically handle band-specific settings automatically, but you can often customize settings for each band in your router's administration page for optimal performance.

Q: Are there health concerns related to the different WiFi frequency bands?

A: All WiFi frequency bands operate at power levels well below international safety standards. There is no scientific evidence suggesting WiFi at any frequency poses health risks.

Your source for the latest tech news, guides, and reviews.

PAGES

About Us

Contribute

Blog

Privacy Policy

CONTACT

INFORMATION

[email protected]

tech-decoded

Receive Tech Decoded's Newsletter in your inbox every week.

NEWSLETTER
